Designed for the working man.

This lift has everything that we know you need in a lift. This is the original lift that our competitors used to set their standards for their manufacturing process. While this is humbling for us, we strive every day to stay continuously improve our designs to make sure that they are to the highest of standards. This lift has a manual drawbar, meaning the wheel pads are slid back and forth on the drawbar and set in place with a set screw to allow you to manually adjust the width you require for your tow. Once the width is set, the L arms are set in place with a cam lock in 4 adjustable positions. When it comes to remote automation, there is only the up and down feature on this wheel lift. If you are looking to have more automation, the Outlaw or the Big Chief might be what you're looking for.


  • American made
  • 75-inch reach
  • 2.5-inch adjustable main pivot pin
  • 1.5-inch cold roll steel tube pin w/ a positive locking bolt
  • Bronze oilight bushings
  • Monarch Hydraulic 12v Pump
  • 4500-pound lift capacity
  • 8500-pound tow capacity


What's included:

  • Frame with all brackets
  • Lower Tube assembly
  • Head with wheel pads and L arms
  • Hydraulic Cylinder
  • Pins and Bushings. (Bushings are pressed before shipping)
  • All Hydraulic hoses and fittings
  • Monarch hydraulic 12v Electric pump
  • Handheld wired remote w/diagram
  • All hardware to mount unit including bolts, nuts, and lock washers.
  • Instruction Manual


This lift does not include chain boxes. Those can be added for an additional $650. Please add those to your cart at checkout. If for any reason they aren't added at checkout, please call us and we can add them to your order.


We DO offer installation in our professional assembly facility. Please be sure to choose the " Proline Series 2 w/installation" at checkout and we will contact you to set up an installation time and date.

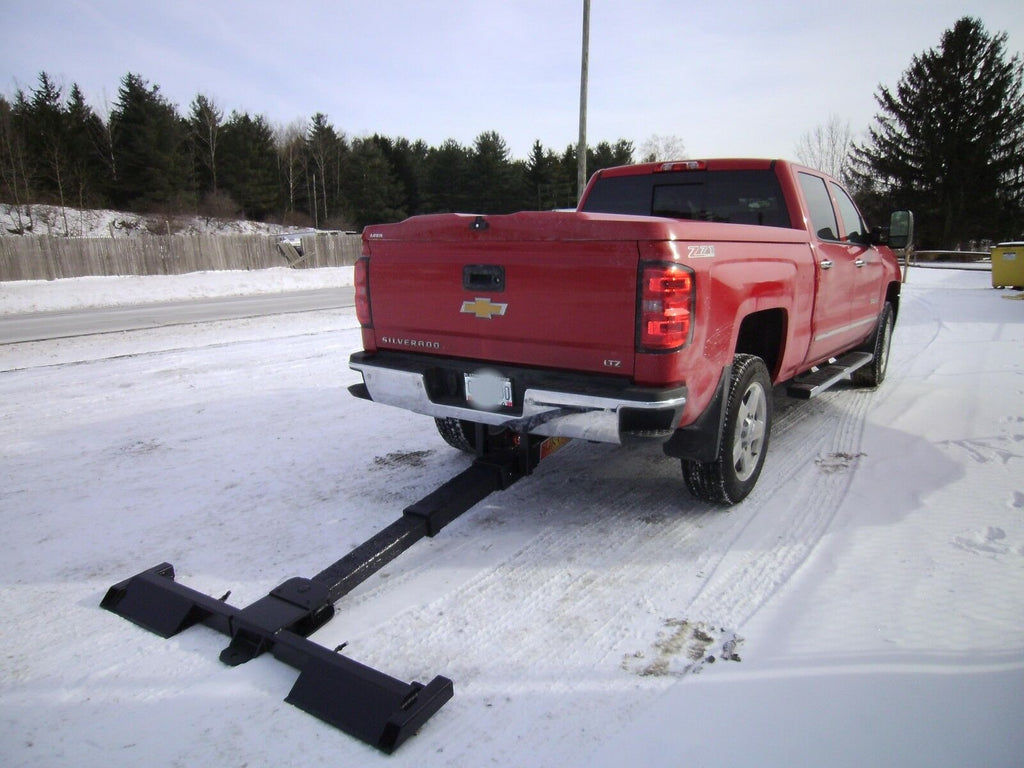

Proline Series 2
